The easy800 control relay and MFD Titan combine virtually all the features of a PLC with the user-friendly operating features of the well-known Easy product line. Their integrated networking capability allows for up to eight devices, implementing applications with over 300 I/O. The control system can be designed either using a single local program or using several programs on the different distributed devices. Up to 1000 metres can be covered by the network. The control relays can also be integrated easily in higher-level automation networks thanks to the networking modules available (for PROFIBUS DP, CANopen, DeviceNet, AS-Interface).
|

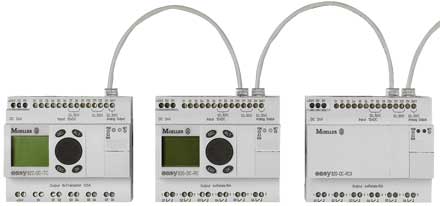

Example: The integrated easy NET network via Standard Cat 5 Cables |
|
|
The easy 800 control relays can be connected to one another easily and with low cost. The integrated NET is available for this purpose. Up to 8 easy 800 units can communicate with one another over a distance of maximum 1000 meters using this feature. It does not matter if the respective devices are running their own programs or being used as a distributed input/output module. |
|

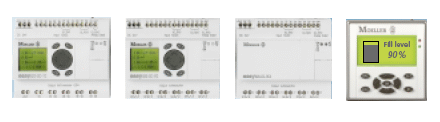

800 series basic Easy Controllers, expandable,
including networking features
|
|||||
|
WITH
Display |
819-AC-RC | 819-DC-RC | 820-DC-RC | 821-DC-TC | 822-DC-TC |
| Without Display | 819-AC-RCX | 819-DC-RCX | 820-DC-RCX | 821-DC-TCX | 822-DC-TCX |
|
Supply
voltage |
115/240 V AC
|
24 V DC
|
|||
| Power dissipation |
10 VA
|
3.4 W
|
|||
|
Inputs,
digital |
12
|
12
|
12
|
12
|
12
|
|
Inputs,
analog, option (0–10 V) |
–
|
Up to
4
of the provided
12
inputs listed
above, may be user assigned as analog inputs on DC controllers ONLY! |
|||
|
Outputs,
digital |
6
Relay
|
6
Relay
|
6 Relay |
8
Transistor
|
8
Transistor
|
|
Outputs,
analog, (0–10 V) |
–
|
–
|
1
|
-
|
1
|
|
Week/
Year clock |
Built in 24 Hour clock will allow 7 day weekly and yearly event programmable event triggers. |
||||
|
Output
continuous current |
8 A
|
8 A
|
8 A
|
0.5 A |
0.5 A
|
|
Short-circuit proof
at cos phi = 1 |
Line protection B 16, 600 A
|
–
|
Line protection
B 16, 600 A |
–
|
|
|
Short-circuit proof
at cos phi = 0.5...0.7 |
Line protection B 16, 900 A
|
–
|
Line protection
B 16, 600 A |
–
|
|
| Dimensions |
4
x 3.5 x 2.3 inches
(W x H x D) inches
|
||||
