Moeller DILM9-01 Contactors
Notice

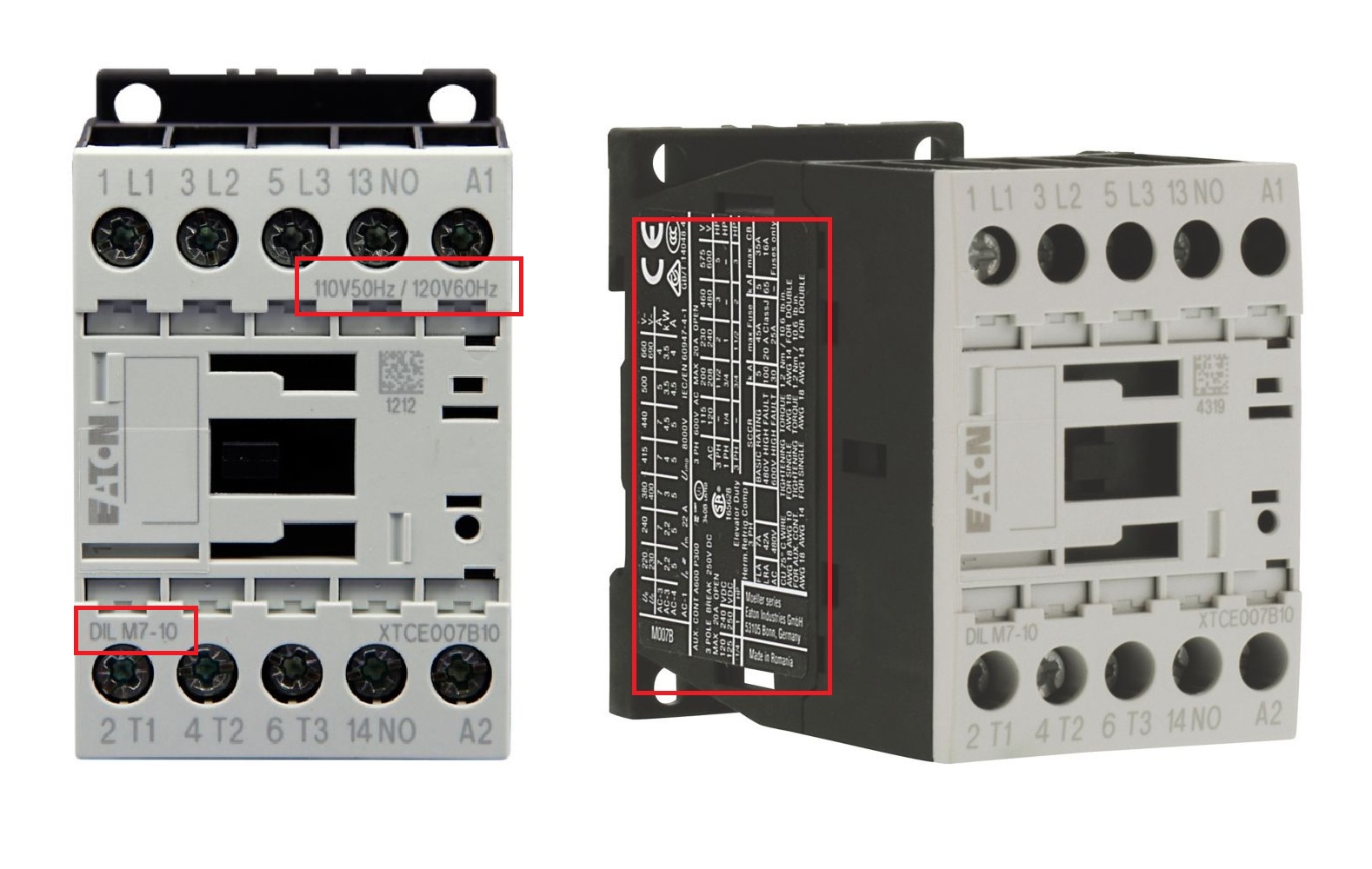

DILM9-01 is not a complete part number. The picture below shows the location of the part number for DILM9-01. Additonally, the coil voltage is required. This may be found on the front (top right) of the contactor or on the spec sticker on the side of the contactor.
DILM9-01 Ordering Information
| Part Name | Article Number |
Rated Operational Current le A AC-3 |
Max. rating for three phase motors, 50 / 60 Hz |
|||
| UL / CSA Hp | Aux Contacts | |||||
| 230 V | 460 V | NO | NC | |||
| DILM9-01 (24V50HZ) |
276712 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (240V50HZ) |
276714 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (110V50HZ.120V60HZ) |
276722 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (190V50HZ.220V60HZ) |
276723 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (220V50HZ.240V60HZ) |
276724 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (230V50HZ.240V60HZ) |
276725 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (380V50HZ.440V60HZ) |
276726 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (400V50HZ.440V60HZ) |
276727 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (24V50/60HZ) |
276729 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (42V50/60HZ) |
276730 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (110V50/60HZ) |
276731 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (220V50/60HZ) |
276732 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (230V50/60HZ) |
276733 | 9 | 3 | 5 | 0 | 1 |
| DILM9-01 (24VDC) |
276740 | 9 | 3 | 5 | 0 | 1 |
DILM9-01 Contactor Specifications
| Rated Operational Current | Ie [A] | HP | Auxiliary Contacts | |||
| AC-3 | AC-1 | @ 230 | @ 460 | Normally Open | Normally Closed | |
| 9 | 9 | 20 | 3 | 5 | 0 | 1 |
DILM9-01 Circuit Diagram
DILM9-01 Dimensions
