Moeller DILM32-XTED11
is now
EATON XTEDXTED1C11T

SAME EXACT PART- ONLY PART # CHANGE

Electronic Top Mounted Off Delayed Timer Module
for use on a DILA series Industrial Control Relay
or a DILM series Contactor


DILM32-XTED11

DILM32-XTED11-1(RA24) Tamper Proof Cover

DILM32-XTED11-1(RA24)

Mounting and Contactor Selector Switch Programming

For Mounting on a

DILA, DILM7, DILM9, DILM12 or DILM15

For Mounting on a

DILM17, DILM25, DILM32

Other DILA Product Lines include:

DILA Industrial Control Relays
DILA Contactor Relays
DILA Industrial Control Relays 		DILA Auxiliary Contacts
DILA Auxiliary Contacts

DILA Auxiliary Contacts 		DILA Timer Modules
DILA Timer Modules

DILA Timer Modules 		DILA Accessories
DILA Accessories

DILA Accessories

DILM32-XTED11-1(RA24) Variations


New Article
Number 		Part Name Operating Voltage Range Timing
Range 		Old Article Number
G05210 DILM32-XTED11-1(RA24) 24 V AC/DC 0.05 s...1 s 105210
G05211 DILM32-XTED11-1(RAC130) 100...130 V AC 0.05 s...1 s 105211
G05212 DILM32-XTED11-1(RAC240) 200...240 V AC 0.05 s...1 s 105212
G04943 DILM32-XTED11-10(RA24) 24 V AC/DC 0.5 s...10 s 104943
G04944 DILM32-XTED11-10(RAC130) 100...130 V AC 0.5 s...10 s 104944
G04945 DILM32-XTED11-10(RAC240) 200...240 V AC 0.5 s...10 s 104945
G04946 DILM32-XTED11-100(RA24) 24 V AC/DC 5 s...100 s 104946
G04947 DILM32-XTED11-100(RAC130) 100...130 V AC 5 s...100 s 104947
G04948 DILM32-XTED11-100(RAC240) 200...240 V AC 5 s...100 s 104948

DILM32-XTED11-1(RA24) Contact Sequence

DILM32-XTED11 Contact Sequence

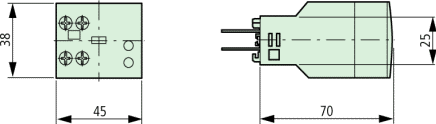

DILM32-XTED11-1(RA24) Dimensions
