Moeller DILM25-01 Contactors
Notice

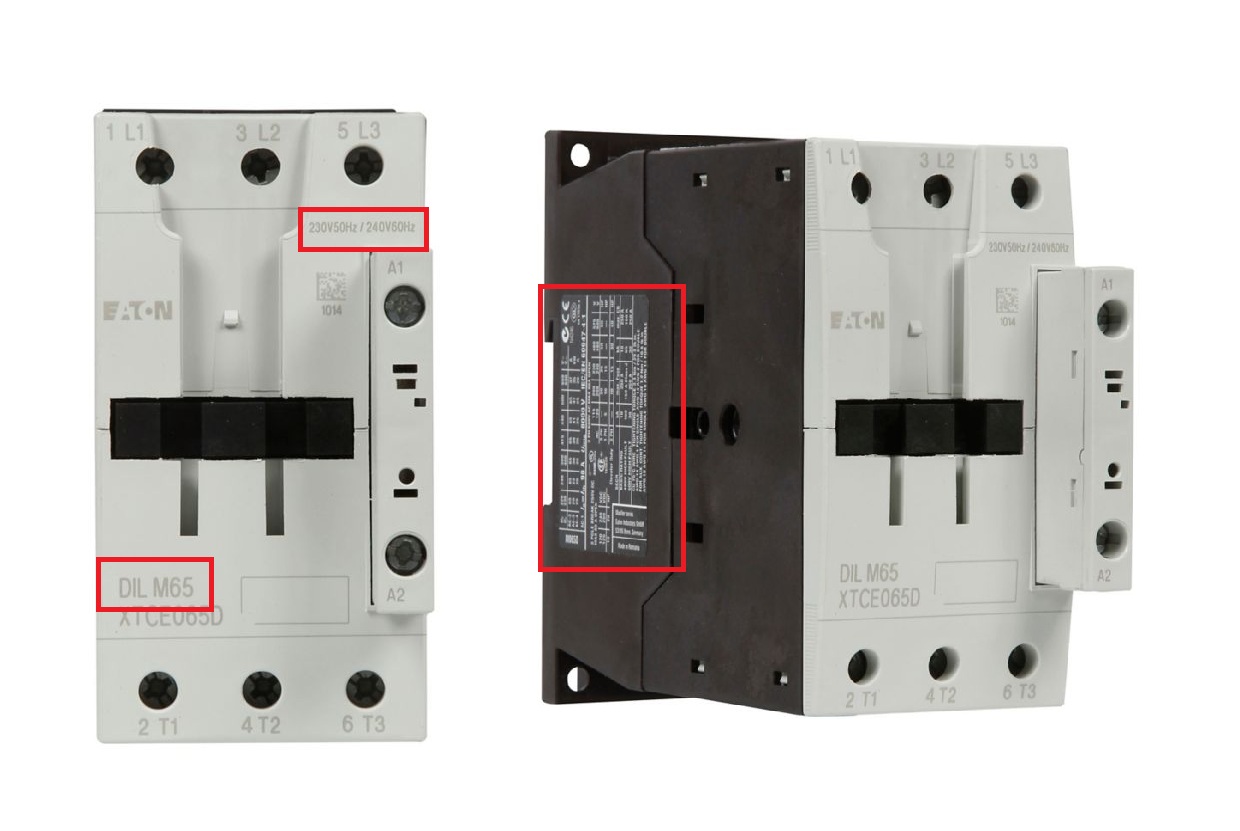

DILM25-01 is not a complete part number. The picture below shows the location of the part number for DILM25-01. Additonally, the coil voltage is required. This may be found on the front (top right) of the contactor or on the spec sticker on the side of the contactor.
DILM25-01 Ordering Information
| Part Name | Article Number |
Rated Operational Current le A AC - 3 |
Max. rating for three phase motors, 50 � 60 Hz |
|||
| UL / CSA Hp | Aux Contacts | |||||
| 230 V | 460 V | NO | NC | |||
| DILM25-01 (230V50HZ.240V60HZ) |
277164 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (24V50HZ) |
277151 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (110V50HZ.120V60HZ) |
277161 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (400V50HZ.440V60HZ) |
277166 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (24V50/60HZ) |
277168 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (110V50/60HZ) |
277170 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (220V50/60HZ) |
277171 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (230V50/60HZ) |
277172 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (RDC24) |
277178 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (48V50HZ) |
277152 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (240V50HZ) |
277153 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (24V60HZ) |
277155 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (115V60HZ) |
277157 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (208V60HZ) |
277158 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (600V60HZ) |
277159 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (42V50HZ,48V60HZ) |
277160 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (415V50HZ,480V60HZ) |
277167 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (380V50/60HZ) |
277173 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (RDC60) |
277179 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (RDC130) |
277180 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (RDC240) |
277181 | 25 | 7.5 | 15 | 0 | 1 |
| DILM25-01 (RDC12) |
104811 | 25 | 7.5 | 15 | 0 | 1 |
DILM25-01 Contactor Specifications
| Ie [A] | HP | Auxiliary Contacts | |||
| AC-3 | AC-1 | @ 230 | @ 460 | Normally Open | Normally Closed |
| 25 | 40 | 7 1/2 | 15 | 0 | 1 |
