Moeller DILM17-01 Contactors
Notice

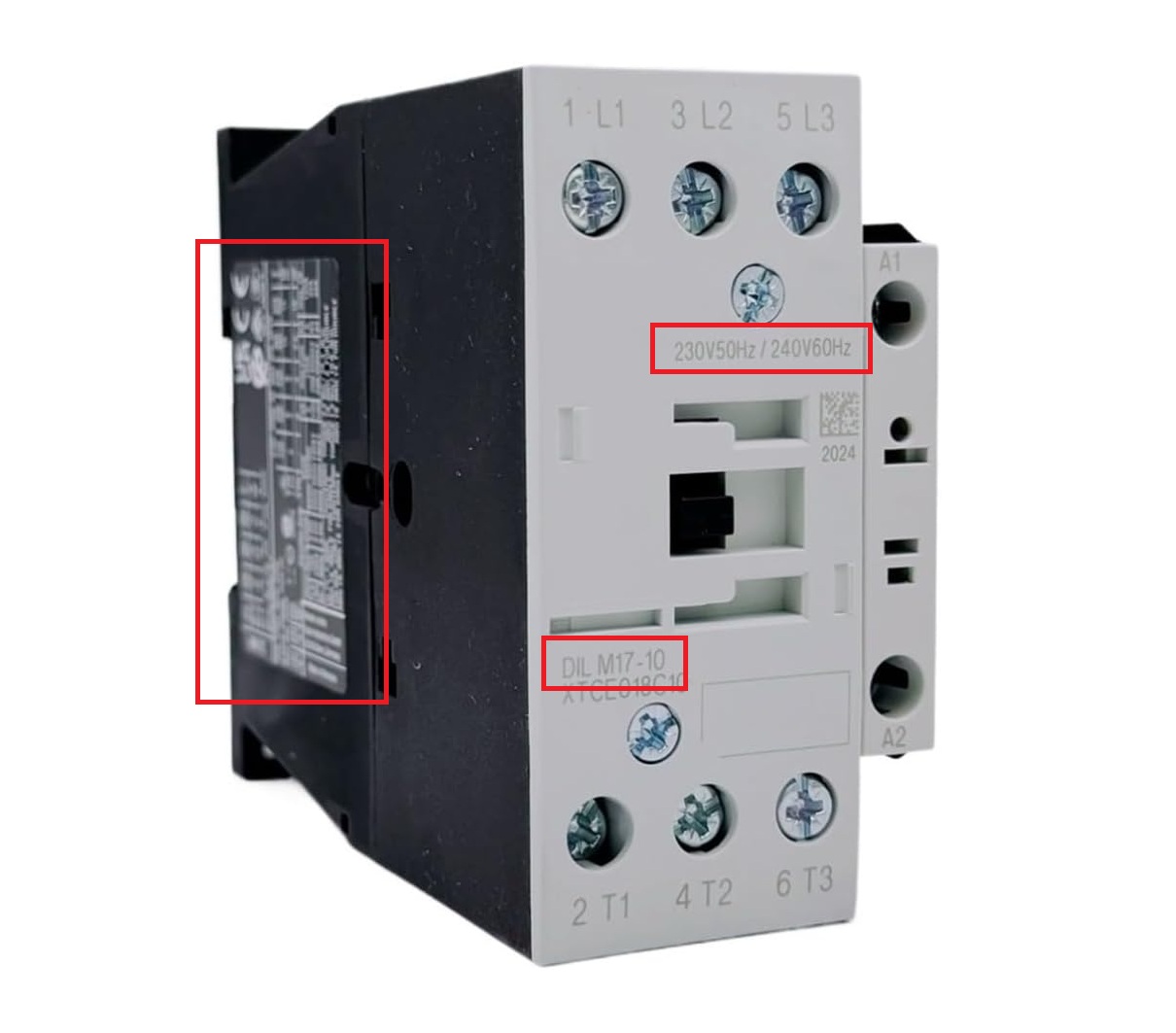

DILM17-01 is not a complete part number. The picture below shows the location of the part number for DILM17-01. Additonally, the coil voltage is required. This may be found on the front (top right) of the contactor or on the spec sticker on the side of the contactor.
DILM17-01 Ordering Information
| Part Name | Article Number |
Rated Operational Current le A AC-3 |
Max. rating for three phase motors, 50 / 60 Hz |
|||
| UL / CSA Hp | Aux Contacts | |||||
| 230 V | 460 V | NO | NC | |||
| DILM17-01 (230V50HZ.240V60HZ) |
277036 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (24V50HZ) |
277023 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (48V50HZ) |
277024 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (240V50HZ) |
277025 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (24V60HZ) |
277027 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (115V60HZ) |
277029 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (208V60HZ) |
277030 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (600V60HZ) |
277031 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (42V50HZ,48V60HZ) |
277032 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (110V50HZ.120V60HZ) |
277033 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (220V50HZ,240V60HZ) |
277035 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (400V50HZ.440V60HZ) |
277038 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (415V50HZ,480V60HZ) |
277039 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (24V50/60HZ) |
277040 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (110V50/60HZ) |
277042 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (220V50/60HZ) |
277043 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (230V50/60HZ) |
277044 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (380V50/60HZ) |
277045 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (RDC24) |
277050 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (RDC60) |
277051 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (RDC130) |
277052 | 18 | 5 | 10 | 0 | 1 |
| DILM17-01 (RDC140) |
277053 | 18 | 5 | 10 | 0 | 1 |
DILM17-01 Contactor Specifications
| Ie [A] | HP | Auxiliary Contacts | |||
| AC-3 | AC-1 | @ 230 | @ 460 | Normally Open | Normally Closed |
| 18 | 35 | 5 | 10 | 0 | 1 |
DILM17-01 Circuit Diagram
DILM17-01 Dimensions
