Moeller DILM12-01 Contactors
Notice
DILM12-01 is not a complete part number. The picture below shows the location of the part number for DILM12-01. Additonally, the coil voltage is required. This may be found on the front (top right) of the contactor or on the spec sticker on the side of the contactor.
DILM12-01 Ordering Information
| Part Name | Article Number |
Rated Operational Current le A AC-3 |
Max. rating for three phase motors, 50 / 60 Hz |
|||
| UL / CSA Hp | Aux Contacts | |||||
| 230 V | 460 V | NO | NC | |||
| DILM12-01 (230V50HZ.240V60HZ) |
276865 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (24V50HZ) |
276852 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (240V50HZ) |
276854 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (110V50HZ.120V60HZ) |
276862 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (190V50HZ.220V60HZ) |
276863 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (220V50HZ.240V60HZ) |
276864 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (230V50HZ.240V60HZ) |
276865 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (380V50HZ.440V60HZ) |
276866 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (400V50HZ.440V60HZ) |
276867 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (24V50/60HZ) |
276869 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (42V50/60HZ) |
276870 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (110V50/60HZ) |
276871 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (220V50/60HZ) |
276872 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (230V50/60HZ) |
276873 | 12 | 3 | 10 | 0 | 1 |
| DILM12-01 (24VDC) |
276880 | 12 | 3 | 10 | 0 | 1 |
DILM12-01 Contactor Specifications
| Ie [A] | HP | Auxiliary Contacts | |||
| AC-3 | AC-1 | @ 230 | @ 460 | Normally Open | Normally Closed |
| 12 | 20 | 3 | 10 | 0 | 1 |

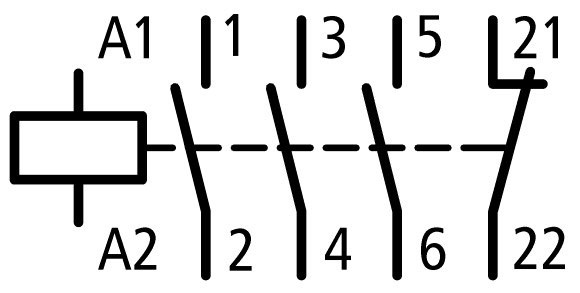

DILM12-01 Circuit Diagram

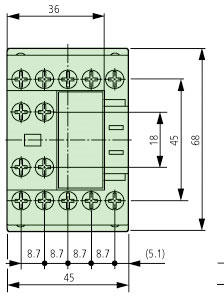

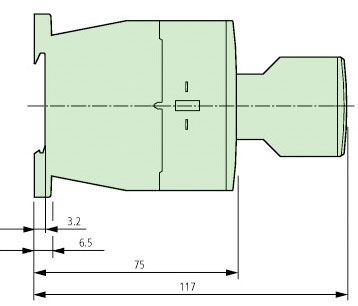

DILM12-01 Dimensions
