Moeller DILM40 Contactors
Notice
DILM40 is not a complete part number. The picture below shows the location of the part number for DILM40. Additonally, the coil voltage is required. This may be found on the front (top right) of the contactor or on the spec sticker on the side of the contactor.
DILM40 Ordering Information
| Part Name | Article Number |
Rated Operational Current le A AC - 3 |
Max. rating for three phase motors, 50 60 Hz |
|||
| UL / CSA Hp | Aux Contacts | |||||
| 230 V | 460 V | NO | NC | |||
| DILM40 (110V50/60HZ) |
277772 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (110V50HZ,120V60HZ) |
277763 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (190V50HZ,220V60HZ) |
277764 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (220V50/60HZ) |
277773 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (220V50HZ,240V60HZ) |
277765 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (230V50/60HZ) |
277774 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (230V50HZ,240V60HZ) |
277766 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (240V50HZ) |
277755 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (24V50/60HZ) |
277770 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (24V50HZ) |
277753 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (380V50HZ,440V60HZ) |
277767 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (400V50HZ,440V60HZ) |
277768 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (415V50HZ,480V60HZ) |
277769 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (42V50/60HZ) |
277771 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (42V50HZ,48V60HZ) |
277762 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (RDC130) |
277782 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (RDC24) |
277780 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (RDC240) |
277783 | 40 | 15 | 30 | 0 | 0 |
| DILM40 (RDC60) |
277781 | 40 | 15 | 30 | 0 | 0 |
DILM40 Contactor Specifications
| Ie [A] | HP | Auxiliary Contacts | |||
| AC-3 | AC-1 | @ 230 | @ 460 | Normally Open | Normally Closed |
| 40 | 50 | 15 | 30 | 0 | 0 |
DILM40 Circuit Diagram

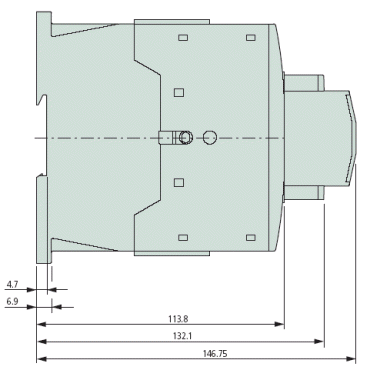

DILM40 Dimensions
