The DILA-22 contactor relay can not be combined with the 4-pole auxiliary contact module.
Normally Open (Make): 2
Normally Closed (Break): 2
MOELLER DILA-22
is now
EATON XTRE10B22
| AC-15 380 V 400 V 415 V  |
 |
Can be combined with auxiliary contact |
Note: |
| 4 | 10 | DILA-XHI(V) | Interlocked opposing contacts |
Available voltages include: 230 V 50 Hz, 240 V 60 Hz, 24 V 50/60 Hz, 110 V 50 Hz,
120 V 60 Hz and 24 V DC
DILA-22 Contact Sequence
DC Coil
AC Coil

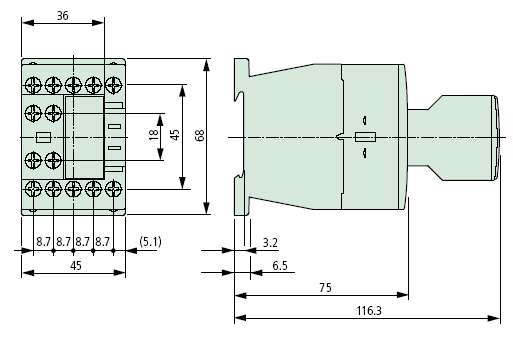

DILA-22 Dimensions
Shown with two pole top mounted auxiliary contact, four pole top mounted auxiliary contact will be slightly wider.
DILA-22 Ordering Information
| Part Number | Article Number | Actuating Voltage | Type of Current | Rated Operational Current |
Auxiliary Contact Module | |
220 V |
380 V |
|||||
| DILA-22 (110VDC) |
276417 | 110V DC | DC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (220VDC) |
276418 | 220V DC | DC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (48VDC) |
276415 | 48V DC | DC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (230V50HZ.240V60HZ) |
276399 | 230V 50Hz. 240V 60Hz | AC operation | 6 | 4 | DILA-XHI(V)... |
| DILA-22 (24V50HZ) |
276386 | 24V 50 Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (110V50/60HZ) |
276405 | 110 V 50/60 Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (110V50HZ.120V60HZ) |
276396 | 110V 50 Hz. 120V 60 Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (220V50HZ.240V60HZ) |
276398 | 220V 50 Hz. 240V 60 Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (190V50HZ.220V60HZ) |
276397 | 190V 50 Hz. 220V 60 Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (220V50/60HZ) |
276406 | 220V 50/60Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (230V50/60HZ) |
276407 | 230 V 50/60 Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (240V50HZ) |
276388 | 240V 50Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (24V50/60HZ) |
276403 | 24V 50/60Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (380V50HZ.440V60HZ) |
276400 | 380V 50 Hz. 440V 60 Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (400V50HZ.440V60HZ) |
276401 | 400V 50 Hz. 440V 60 Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (42V50/60HZ) |
276404 | 42V 50/60Hz | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (TVC100) |
276409 | TVC100 | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (TVC200) |
276410 | TVC200 | AC operation | 6 | 4 | 16DILA-XHI(V)... |
| DILA-22 (24VDC) |
276414 | 24 V DC | DC operation | 6 | 4 | DILA-XHI(V)... |
