Series-C Frame Size - L Part Index CLICK HERE |

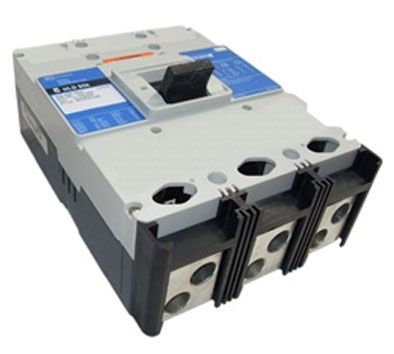

Type LD (3-Pole) Molded Case Switch Shown |
|
LDB2600WK — Molded Case Switch
| Number of Poles |
Amperes | Rating | Terminals |
|---|---|---|---|
| 2 | 600 | 600 Vac 250 Vdc |
Without Line and Load Terminals |
LDB2600WK Dimensions
 |
| Number of Poles | Width | Height | Depth |
|---|---|---|---|
| 2, 3 | 8.25 (209.6) | 10.75 (273.1) | 4.06 (103.1) |
| 4 | 11.00 (279.4) | 10.75 (273.1) | 4.06 (103.1) |
