Eaton/Moeller
|
|||||
Eight inputs, four relay or transistor outputs. In all the DC versions, there is the option of two analog inputs. The easy412-AC-RC has three contacts and one coil for circuit configuration in each of up to 41 lines of logic. |
Supply voltage |
Power dissipation | Inputs, digital |
Inputs, analog, option (0–10 V) |
Outputs | Outputs, analog, (0–10 V) |
115/240 VAC | 5 VA | 8 | -- | 4 Relay | Not Available |
LC display, keypad |
Week/ Year clock |
Output continuous current |
Short-circuit proof at cos phi = 1 |
Short-circuit proof at cos phi = 0.5...0.7 |

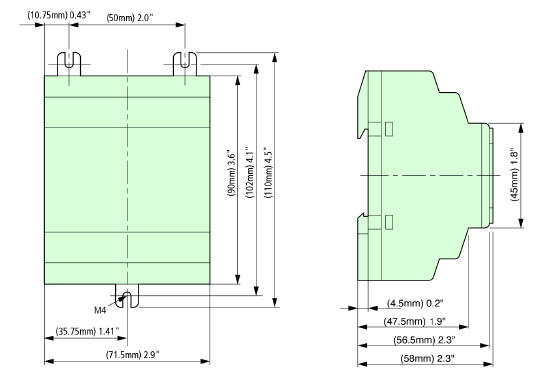

Dimensions in inches (W x H x D) |
Yes | Yes/– | 8 A | Line protection B 16, 600 A | Line protection B 16, 900 A | 2.8 x 3.5 x 2.3 in. |
|
