Eaton/Moeller
MCS22
Pressure Switch
1 Pole, 1-Changeover Contacts with Gold-Plated Contacts |
![MCS22](../images/mscn4.gif) |
|
Operating Pressure |
Test Pressure |
Rupturing Pressure |
Bars |
25 |
32 |
90 |
PSI |
362.59434 |
464.12076 |
1305.33964 |
MCS22 Cut-out and Cut-in pressure
Make and break pressure: separately infinitely adjustable.
Pressures can be set to any point within the area of the
pressure diagram for the appropriate switch. |
![MCS22 Cut-out and Cut-in pressure](../images/mcs22-chart.gif)
Min. switching
differential: 0.7 bar
Example:
Cut-out pressure 17.5 bar
Cut-in pressure 7.8 bar
|
MCS22
Dimensions |

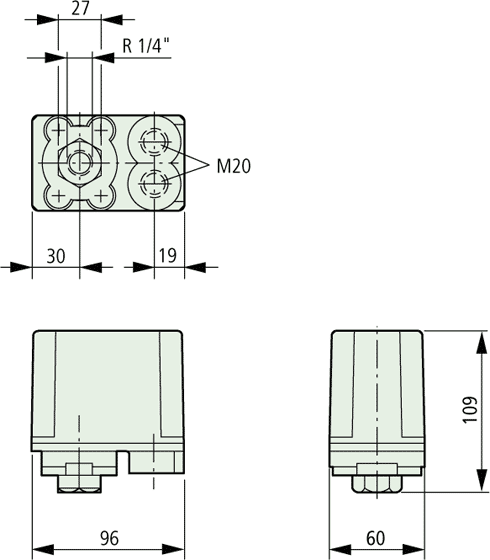

![MCS22 Dimensions](../images/00085869_0.gif)
|
MCSN4-V AWA Installation Sheets |
![](../kmimages/download.gif) |
Pressure switch
MCS..., MCSN
08/07 AWA 132-132
Created:
12/8/03
[854 KB]![](../kmimages/pdf.gif) |
|
